JKS Manufacturing JKS6150 J-Axis Front Lower Control Arms for 07-17 Jeep® Wrangler & Wrangler Unlimited JK

Catalog #: 16213.104
JKS Manufacturing Part #: JKS6150
Description

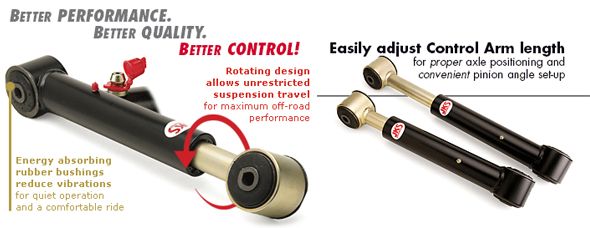

Take CONTROL of your Jeep® suspension with new Control Arms from JKS. The adjustable design allows the user to control caster and pinion angle, as well as position the axle housing for proper tire clearance. Furthermore, each end of the control arm can rotate independently to accommodate extreme suspension travel off-road.
Details

JKS Control Arms utilize greasable brass bearings for smooth, reliable operation and excellent longevity. Fine pitch adjustment threads ensure superior strength and unsurpassed tuning ability. With over 3" of adjustment, the working length of each JKS Control Arm can be increased, decreased or exactly the same as the OE suspension arm.
Constructed of heavy-gauge steel tubing and MIG welded for quality and consistency, our Control Arms are much stronger and resistant to impact than the original suspension arms. New OE rubber bushings are used to isolate road noise and vibrations without over-stressing the mounting brackets. Finally, a durable powdercoat finish and zinc plating provide excellent corrosion protection.

Product Overview
A combination of upper and lower suspension arms position and control axle movement on most coil sprung Jeeps®.

The fixed-length OE suspension arms are bolted to the chassis and axle through rubber bushings to help reduce the transfer of noise into the vehicle. The rubber bushings also absorb torsional forces created by the suspension arms off-road.
Aftermarket suspension arms and bushings that are less flexible will over-stress the chassis and axle mounting brackets and should not be installed. Yet many manufacturers provide these components with their suspension kits to save money.
Product Features
Lubricated threads and internal brass bearing for smooth operation and excellent longevity
Spring-loaded, crankshaft type seal prevents moisture and debris contamination
Heavy duty construction is far stronger than the thin gauge stamped metal OE suspension arm
Threaded body utilizes superior 18 threads-per-inch versus inferior 5 threads-per-inch used by competitors
Durable powdercoat finish and zinc plating provide excellent protection from corrosion and debris

Installation Notes
Installation Difficulty:
Level 2Intermediate
Lower Control Arms adjust 1.0" shorter and 2.25" longer than OE suspension arms. Upper Control Arms adjust 0.25" shorter and 3.75" longer than OE suspension arms.
Installation Time: 1-2 hours
Parts Included

Control Arm Pair

  • Features: Adjustable Control Arms
  • Lift Height: 0, 0.00, 0.25, 0.50, 0.75, 1.00, 1.25, 1.50, 1.75, 2.00, 2.25, 2.50, 2.75, 3.00, 3.25, 3.50, 3.75, 4.00, 4.25, 4.50, 4.75, 5.00, 5.25, 5.50, 5.75, 6.00
  • Lift Height Range: 0 - 2.5 inch, 3 - 4.5 inch, 5 inch and up
  • Location: Front
  • Upper/Lower: Lower Control Arms
  • Jeep Wrangler 2-Door (JK)

  • 2017 Jeep Wrangler 2-Door (JK)
  • 2016 Jeep Wrangler 2-Door (JK)
  • 2015 Jeep Wrangler 2-Door (JK)
  • 2014 Jeep Wrangler 2-Door (JK)
  • 2013 Jeep Wrangler 2-Door (JK)
  • 2012 Jeep Wrangler 2-Door (JK)
  • 2011 Jeep Wrangler 2-Door (JK)
  • 2010 Jeep Wrangler 2-Door (JK)
  • 2009 Jeep Wrangler 2-Door (JK)
  • 2008 Jeep Wrangler 2-Door (JK)
  • 2007 Jeep Wrangler 2-Door (JK)
  • Jeep Wrangler Unlimited 4-Door (JK)

  • 2017 Jeep Wrangler Unlimited 4-Door (JK)
  • 2016 Jeep Wrangler Unlimited 4-Door (JK)
  • 2015 Jeep Wrangler Unlimited 4-Door (JK)
  • 2014 Jeep Wrangler Unlimited 4-Door (JK)
  • 2013 Jeep Wrangler Unlimited 4-Door (JK)
  • 2012 Jeep Wrangler Unlimited 4-Door (JK)
  • 2011 Jeep Wrangler Unlimited 4-Door (JK)
  • 2010 Jeep Wrangler Unlimited 4-Door (JK)
  • 2009 Jeep Wrangler Unlimited 4-Door (JK)
  • 2008 Jeep Wrangler Unlimited 4-Door (JK)
  • 2007 Jeep Wrangler Unlimited 4-Door (JK)
