WARN M8274-50 Self-Recovery Winch (24V DC)

Catalog #: 92102.05
WARN Part #: 375832
Loved by off-roaders who compete, it's our fastest winch. No load retrieval speed for the M8274-50 is 73.4 feet per minute and that's not all. At 150 feet of 5/16" cable, it also has a very long line capacity. Its unique spur-gear drive train and upright design are totally rugged. Its braking system delivers smooth operation with superior heat dissipation. Roller fairlead, remote control on 12-ft. lead, free spool clutch and battery cables are included.

Wireless Remote Control System can be added which is also available separately.
Part Numbers: PN 375832 CE (24V DC)
Rated Line Pull: 8000 lbs. (3630 kgs.) single-line
Motor: 24V 2.5 hp/3.43kw, Series Wound™
Remote Control: Remote switch, 12' (3.7m) lead
Geartrain: Spur Gear
Gear Ratio: 134:1
Lubrication: 6 oz. SAE 30 (non-detergent)
Clutch (freespooling): Sliding Motor Pinion Gear
Brake: Automatic, disc type
Drum Diameter/Length: 3.5"/8.5" (9cm/22cm)
Weight: 110 lbs. (50 kgs.)
Wire Rope: 150', 5/16" diameter (46m, 8mm diam.)
Fairlead: Roller
Recommended Battery: 650 CCA for winching
Battery Leads: 2 gauge, 72" (1.83m)
Finish: Argent Gray Powder Coat with Clear Coat
Nuts: PN 7616, L/W: PN 2146
Bolts: PN 7165
CE Winches: CE products are designed to meet European Standards. CE winches include CE labels, manuals, roller fairlead, safety hook and thimble.

Line Pull
Line Speed
Pull by layer
0 65(19.8) 24 amps 1/8000(3629)
2000(910) 23(7.01) 96 amps 2/7460(3384)
4000(1810) 17(5.18) 149 amps 3/6980(3168)
6000(2720) 13(3.96) 203 amps 4/6620(3005)
8000(3630) 7.9(2.41) 273 amps 5/6290(2855)
Above performance specs are based on first layer of drum

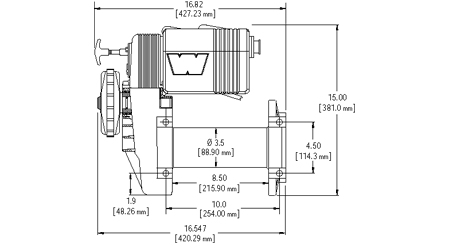

Winch Dimensions: 16.5" L. x 8.5" D. x 15" H.
(420mm L. x 220mm D. x 381 mm H.)
Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm)
Installation Notes
Installation Difficulty:
Level 2Intermediate
Installation Time: 1-2 hours
Parts Included

150', 5/16" diam. (30m, 8mm diam.) Wire Rope
24V 4.8 hp Series Wound Motor
Remote switch, 12' (3.7m) lead
Spring- loaded control switches
Automatic Direct Drive Cone Brake
3-Stage Planetary with a 216:1 ratio
Sliding Ring Gear Clutch for freespooling
Weather-shielded solenoids
Four Solenoids provide emergency back up
Color-coded 2 gauge, 72" cables and connectors.

  • Line Length: 150 ft
  • Line Pull: 8,000 lbs
  • Max Line Speed: 65 ft/min
  • Current Draw: 273 amps
  • Remote: Wired
  • Intended Usage: Frequent
  • Solenoid: Integrated
  • Line Type: Steel Cable
