 |  | | Home » Jeep Winches, Recovery & Safety Gear » Winches » WARN 9.5ti Thermometric Self-Recovery Winch | WARN 9.5ti Thermometric Self-Recovery Winch
 | $1183.99 |  |  | This item has an additional $19.99 shipping surcharge. Quadratec Part No: 92107.03
The WARN 9.5ti is 9500 lbs. of pulling capacity packed into a massive aluminum die-cast body. Sealed for extreme-duty water-resistance and powered by a new generation Bosch motor and controlled by WARN's first thermometric indicator that gives the operator motor operating temperature information. The thermometric indicator LED on the new handheld remote provides instantaneous operator feedback on motor temperature. Limited Lifetime Warranty.
Installation NotesInstall Time: 1-2 Hours Installation Instructions: Download PDF
Additional Images
Fits these Vehicles- Universal Fit - This part will fit most vehicles. Some universal fit products require that you select a specific size or style, based on the actual features on your Jeep or Truck.
| | Parts Included- 125', 5/16" diameter (30m, 8mm diam.) Wire Rope
- Zinc plated Roller Fairlead
- Gen II, Series Wound™ Motor
- Remote switch, 12' (3.7m) lead
- Spring- loaded control switches
- Automatic Direct Drive Cone Brake
- 3-Stage Planetary with a 156:1 ratio
- Sliding Ring Gear Clutch for freespooling Weather-shielded solenoids
- Color-coded 2 gauge, 72" cables and connectors
| Product Details
The 9.5ti packs 9500 lbs of pulling capacity into a massive 12.5 lb aluminum die-cast body. This winch not only looks great, but sheds the elements like no other winch on the market: seals at the key points give extreme-duty water resistance. A Gen II Series Wound motor delivers just the right balance between torque and speed. Plus another Warn Industries first - operator feedback - the thermometric indicator gives the operator information about motor temperature during the winching operation.
Also available in the Multi-Mount
portable winch configuration.
| 9.5ti SPECS/PART NUMBERS |
| Part Number: PN 67550 (12V DC) |
| Rated Line Pull: 9500 lbs. (4310 kgs.) single-line |
| Motor: Gen II, Series Wound™ |
| Remote Control: Remote switch, 12' (3.7m) lead |
| Geartrain: 3-Stage Planetary |
| Gear Ratio: 156:1 |
| Lubrication: Aeroshell #17 |
| Clutch (freespooling): Sliding Ring Gear |
| Brake: Automatic Direct Drive Cone |
| Drum Diameter/Length: 2.5"/9.0" (6.4cm/23cm) |
| Weight: 89 lbs. (36.3kgs.) |
| Wire Rope: 125', 5/16" diameter (30m, 8mm diam.) |
| Fairlead: Roller |
| Recommended Battery: 650 CCA minimum for winching |
| Battery Leads: 2 gauge, 72" (1.83m) |
| Finish: Chromate with high-gloss powder coat |
| Nuts/Bolts: PN 39570 |
|
| 12V DC PERFORMANCE SPECS |
Line Pull Lbs.(Kgs.) |
Line Speed FT./min(M/min.) |
Motor Current |
Pull by layer layer/Lbs(Kgs.) |
| 0 |
62(18.9) |
47 amps |
1/9500(4313) |
| 2000(910) |
16.3(4.97) |
160 amps |
2/8650(3927) |
| 4000(1810) |
11.8(3.60) |
230 amps |
3/7920(3595) |
| 6000(2720) |
9.31(2.84) |
305 amps |
4/7400(3359) |
| 8000(3630) |
7.59(2.31) |
370 amps |
5/6940(3150) |
| 9500(4310) |
6.67(2.03) |
425 amps |
|
|
| |
| Above performance specs are based on first layer of drum |
|

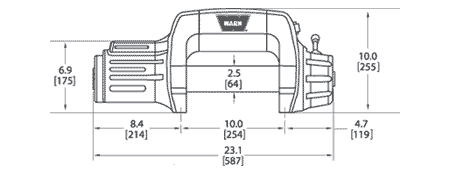

Winch Dimensions: 23.1" L. x 6.3" D. x 10.0" H. (587mm L. x 160mm D. x 254mm H.) |
| Mounting Bolt Pattern: 10.0" x 4.5" (254mm x 114.3mm) |
|
|
