Once again, Warn Industries is set to revolutionize the winch world. We've developed a product with more stamina than any other winch of its kind. More power. More speed. More endurance. This is no ordinary winch: This is the WARN Endurance 12.0. This winch gives you 12,000 lbs. of pulling capacity with an increased duty cycle - the secret is its innovative cooling system.
The Endurance 12.0 is also one of the WARN 12,000lb capable winches designed to work on the mid-frame mount style of the Jeep® CJ & Wrangler lineup!
Here are some similar items you might be interested in
WARN Endurance 12.0 Winch
Description
Details
This winch gives you 12,000 lbs. of pulling capacity with an increased duty cycle - the secret is its innovative cooling system. Here's how it works:
The specially designed cooling fan (which is mounted under the vehicle's hood) automatically turns on when the winch's motor reaches a certain temperature. The fan forces air through a hose and directly into the winch's motor housing, cooling the motor. The air then flows out of the motor housing via a second hose and is discharged.
The Endurance 12.0 has other outstanding features including a heavy-duty contactor for increased durability and reliability, and a high-speed, three-stage planetary geartrain for fast, smooth, and dependable operation. For the ultimate in good looks and corrosion resistance, the winch wears a durable, glossy-black powder-coated finish. Much of the hardware, including the clutch lever, is stainless steel for added protection against the elements. The Endurance 12.0 also features extreme-duty winch sealing to keep the elements out. And, because this is a WARN winch, it has a limited lifetime warranty backed by a world-wide service organization.
When you want a winch that'll really go the distance, you want a winch with serious endurance: The WARN Endurance 12.0.
A Soft Winch Cover is also available for this winch.
Above performance specs are based on first layer of drum.
![Skill Level 2 Icon]()
Level 2Intermediate
The specially designed cooling fan (which is mounted under the vehicle's hood) automatically turns on when the winch's motor reaches a certain temperature. The fan forces air through a hose and directly into the winch's motor housing, cooling the motor. The air then flows out of the motor housing via a second hose and is discharged.
The Endurance 12.0 has other outstanding features including a heavy-duty contactor for increased durability and reliability, and a high-speed, three-stage planetary geartrain for fast, smooth, and dependable operation. For the ultimate in good looks and corrosion resistance, the winch wears a durable, glossy-black powder-coated finish. Much of the hardware, including the clutch lever, is stainless steel for added protection against the elements. The Endurance 12.0 also features extreme-duty winch sealing to keep the elements out. And, because this is a WARN winch, it has a limited lifetime warranty backed by a world-wide service organization.
When you want a winch that'll really go the distance, you want a winch with serious endurance: The WARN Endurance 12.0.
A Soft Winch Cover is also available for this winch.
| Endurance 12.0 SPECS/PART NUMBER |
| Part Number: 73010 |
| Rated Line Pull: 12000 lbs. (5440 kgs.) |
| Motor: Series Wound, 12V 4.6 hp |
| Remote Control: Remote switch, 12' (3.7m) lead |
| Geartrain: 3-Stage Planetary |
| Gear Ratio: 216:1 |
| Clutch (freespooling): Sliding Ring Gear |
| Brake: Mechanical Cone Brake |

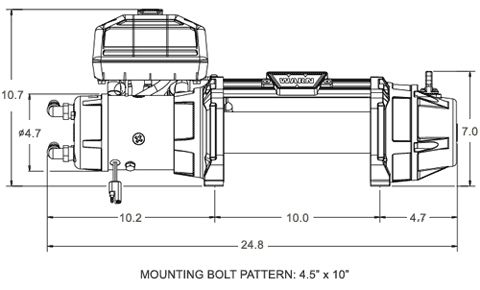

| Drum Diameter/Length: 2.5" diam./9" legth (6.4cm/22.9cm) |
| Wire Rope: 80' of 3/8" (24m of 9.5mm diam.) |
| Fairlead: Roller |
| Recommended Battery: 650 CCA minimum for winching |
| Battery Leads: 2 gauge, 72" (1.83m) |
| Finish: High-gloss black powdercoat |
| Nuts/Bolts: PN 39625 |
| 12V DC PERFORMANCE SPECIFICATIONS | |||
| Line Pull Lbs.(Kgs.) |
Line Speed FT./min(M/min.) |
Motor Current |
Pull by layer layer/Lbs(Kgs.) |
| 0 | 39.5 (12.0) | 47.8 amps | 1/12,000 (5440) |
| 2000 | 15.1 (4.60) | 127.0 amps | 2/9517 (4317) |
| 4000 | 10.4 (3.17) | 192.0 amps | 3/7886 (3577) |
| 6000 | 7.7 (2.35) | 257.0 amps | 4/6732 (3054) |
| 8000 | 6.1 (1.86) | 316.0 amps | |
| 9500 | 4.8 (1.46) | 358.0 amps | |
| 12000 | 3.4 (1.04) | 429.0 amps | |
Above performance specs are based on first layer of drum.
Installation Notes
Installation Difficulty:
Level 2IntermediateInstallation Time: 1-2 hours
Parts Included
Winch with 80' Wire Rope
Remote Control
Roller Fairlead
Cooling Motor
Cooling Hose
Contactor Control Box
Warranty
Limited Lifetime Mechanical Warranty & 7 Year Electrical Warranty
