WARN VR12000 Winch is no longer available

WARN VR12000 Winch

Description
This product is eligible for up to $150 Mail-In Rebate!
The VR12000 is the large capacity offering of the new WARN VR Series (Vehicle Recovery) of winches. The WARN VR Series is aimed at both the first-time winch buyer and the person looking to save some cash, but still get a genuine WARN winch. With a stout 12,000 lb. pulling capacity and plenty of performance, the VR12000 is big on power and big on value. Available for Purchase in United States and Canada Only.
Details
VR12000 SPECS/PART NUMBERS
Part Numbers: PN 86260 (12V DC)
Rated Line Pull: 12000 lbs. (5443 kgs.) single-line
Motor: 12V DC, Series Wound™
Electrical Controls: Solenoid
Remote Control: Remote switch, 12" (3.7m) Lead
Geartrain: 3-Stage Planetary
Gear Ratio: 216:1
Clutch (freespooling): Sliding Ring Gear
Brake: Automatic Direct Drive Cone
Drum Diameter/Length: 2.5"/9.0" (6.4cm/23cm)
Weight (kit shipping): 89 lbs. (40.4 kgs.)
Wire Rope: 3/8" x 94' (9.5mm x 28.6m)
Fairlead: Roller
Recommended Battery: 650 CCA for winching
Battery Leads: 2 gauge, 72" (1.83m)
Finish: Powder coat over primer undercoating
Warranty: Limited Lifetime

12V DC PERFORMANCE SPECS
Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor
Current
Pull by layer
layer/Lbs(Kgs.)
0 28.4 (8.6) 65 amps 1/12000(5443)
2000(910) 12.6 (3.8) 144 amps 2/111200(5044)
4000(1810) 9.5 (2.8) 215 amps 3/10340 (4690)
6000(2720) 7.5 (2.2) 281 amps 4/9770 (4432)
8000(3630) 5.8 (1.7) 349 amps 5/9250 (4196)
10000(4540) 4.4 (1.3)) 415 amps
12000(5440) 3.6 (1.0) 457 amps

Above performance specs are based on first layer of drum

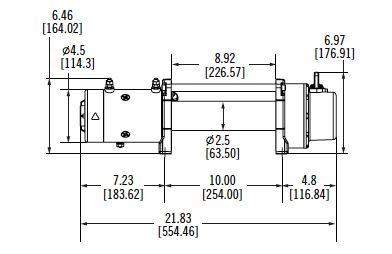

Winch Dimensions: 21.83" L. x 6.3" D. x 6.97" H.
(554mm L. x 160mm D. x 177mm H.)
Mounting Bolt Pattern: 10.0" x 4.5"
(254mm x 114.3mm)
Installation Notes
Installation Difficulty:
Level 2Intermediate
Installation Time: 1-2 hours
Parts Included

VR12000lb Winch
Control Pack
94’ of 3/8” (28.6m of 8mm) diameter wire rope with Hook
Roller Fairlead
Remote control with 12’ (3.7m) lead

Warranty
Limited Lifetime Mechanical Warranty & 7 Year Electrical Warranty
  • Line Length: 94 ft
  • Line Pull: 12,000 lbs
  • Max Line Speed: 28 ft/min
  • Current Draw: 349 amps
  • Remote: Wired
  • Intended Usage: Occasional
  • Solenoid: Remote
  • Line Type: Steel Cable
