WARN VR8000 Winch with 100' Spydura™ Synthetic Rope and Hawse Fairlead

The Quadratec® Difference
Catalog #: 92136.0110
WARN Part #: 87835
Description
This product is eligible for up to $150 Mail-In Rebate!
The VR8000 is the first of the new WARN Vehicle Recovery line of winches aimed at first time winch buyers, or just those looking to save some cash and still get a genuine WARN winch. A full 8,000 lb. pulling capacity makes this winch great for lighter trucks, Jeeps, and SUVs. Quick line speed, durable construction, and WARN dependability ensure this winch will come through time and time again. Available for Purchase in United States and Canada Only.
Details
VR8000 SPECS/PART NUMBERS
Part Numbers: PN 87835 (12V DC)
Rated Line Pull: 8000 lbs. (3629 kgs.) single-line
Motor: 12V DC, Series Wound™
Electrical Controls: Solenoid
Remote Control: Remote switch, 12" (3.7m) Lead
Geartrain: 3-Stage Planetary
Gear Ratio: 216:1
Clutch (freespooling): Sliding Ring Gear
Brake: Automatic Direct Drive Cone
Drum Diameter/Length: 2.5"/9.0" (6.4cm/23cm)
Weight (kit shipping): 62 lbs. (28.12 kgs.)
Rope: Spydura™ Synthetic 3/8" x 100' (30m, 9.5mm diam.)
Fairlead: Full radius polished aluminum hawse
Recommended Battery: 650 CCA for winching
Battery Leads: 2 gauge, 72" (1.83m)
Finish: Powder coat over primer undercoating
Warranty: Limited Lifetime

12V DC PERFORMANCE SPECS
Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor
Current
Pull by layer
layer/Lbs(Kgs.)
0 29 (8.8) 69.2 amps 1/8000(3629)
2000(910) 14.2 (4.3) 179.2 amps 2/7280(3302)
4000(1810) 9.9 (3) 281 amps 3/6670(3026)
6000(2720) 7.3 (2.2) 381 amps 4/6230 (2826)
8000(3630) 4.8 (1.4) 457 amps

Above performance specs are based on first layer of drum

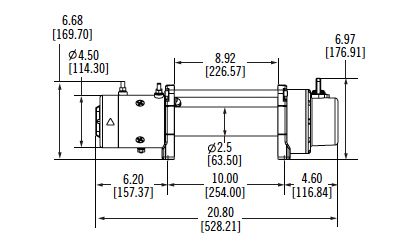

Winch Dimensions: 20.80" L. x 6.3" D. x 6.97" H.
(528mm L. x 160mm D. x 177mm H.)
Mounting Bolt Pattern: 10.0" x 4.5"
(254mm x 114.3mm)
Installation Notes
Installation Difficulty:
Level 2Intermediate
Parts Included

VR8000lb Winch
Control Pack
100’ of 3/8” (30m of 9.5mm) diameter Spydura™ Synthetic rope with Hook and Protective Sleeve
Polished Aluminum Hawse Fairlead
Remote control with 12’ (3.7m) lead

Warranty
Limited Lifetime Warranty.
  • Line Length: 100 ft
  • Line Pull: 8,000 lbs
  • Max Line Speed: 29 ft/min
  • Current Draw: 457 amps
  • Remote: Wired
  • Intended Usage: Occasional
  • Solenoid: Remote
  • Line Type: Synthetic Rope
